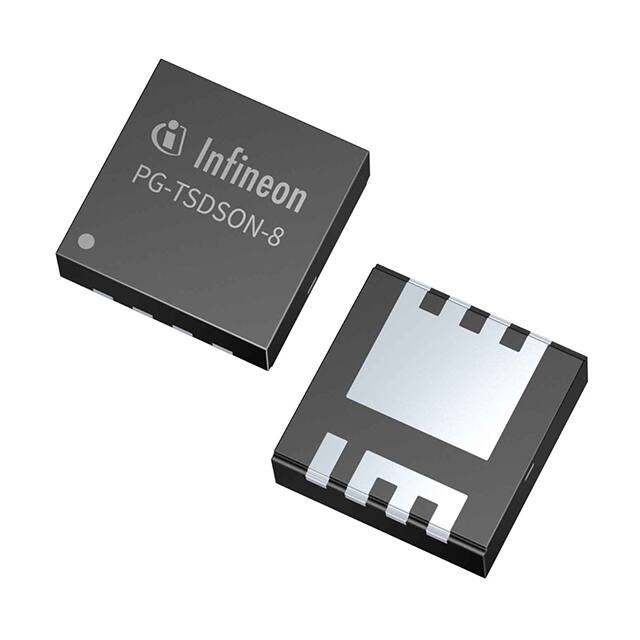

IAUZ40N06S5N050ATMA1 数据手册
IAUZ40N06S5N050
OptiMOS™-5 Power Transistor
Product Summary
Features
• OptiMOS™ power MOSFET for automotive applications
• N-channel - Enhancement mode - Normal level
VDS
60
V
RDS(on),max
5
mW
ID
40
A
• MSL1 up to 260°C peak reflow
PG-TSDSON-8-33
• 175 °C operating temperature
• Green product (RoHS compliant)
• 100% Avalanche tested
Type
Package
Marking
IAUZ40N06S5N050
PG-TSDSON-8-33
5N06050
Maximum ratings, at T j=25 °C, unless otherwise specified
Parameter
Symbol
Drain current
ID
Conditions
V GS=10 V, Chip
limitation1,2)
V GS=10V, DC
current3)
T a=85 °C, V GS=10 V,
Value
86
Unit
A
40
R thJA on 2s2p2,4)
14
Pulsed drain current2)
I D,pulse
T C=25 °C, t p= 100 µs
241
Avalanche energy, single pulse2)
E AS
I D=20 A
115
mJ
Avalanche current, single pulse
I AS
-
40
A
Gate source voltage
V GS
-
±20
V
Power dissipation
P tot
T C=25 °C
71
W
Operating and storage temperature
T j, T stg
-
-55 ... +175
°C
Rev. 1.1
page 1
2021-03-18
IAUZ40N06S5N050
Parameter
Symbol
Values
Conditions
Unit
min.
typ.
max.
Thermal characteristics2)
Thermal resistance, junction - case
R thJC
-
-
-
2.1
Thermal resistance, junction ambient4)
R thJA
-
-
35.5
-
K/W
Electrical characteristics, at T j=25 °C, unless otherwise specified
Static characteristics
Drain-source breakdown voltage
V (BR)DSS V GS=0V, I D=1mA
60
-
-
Gate threshold voltage
V GS(th)
V DS=V GS, I D=29µA
2.2
2.8
3.4
Zero gate voltage drain current
I DSS
V DS=60V, V GS=0V,
T j=25°C
-
-
1
T j=125°C1)
-
-
100
V DS=60V, V GS=0V,
V
µA
Gate-source leakage current
I GSS
V GS=20V, V DS=0V
-
-
100
nA
Drain-source on-state resistance
R DS(on)
V GS=7V, I D=10A
-
5.0
6.0
mW
V GS=10V, I D=20A
-
4.0
5.0
-
-
1.5
-
Gate resistance2)
Rev. 1.1
RG
page 2
W
2021-03-18
IAUZ40N06S5N050
Parameter
Symbol
Values
Conditions
Unit
min.
typ.
max.
-
1692
2200
-
373
485
Dynamic characteristics2)
Input capacitance
C iss
Output capacitance
C oss
Reverse transfer capacitance
Crss
-
18
26
Turn-on delay time
t d(on)
-
3.8
-
Turn-off delay time
t d(off)
-
8.9
-
Rise time
tr
-
1.0
-
Fall time
tf
-
4.6
-
Gate to source charge
Q gs
-
7.7
10.0
Gate to drain charge
Q gd
-
4.4
6.6
Gate charge total
Qg
-
23.5
30.5
Gate plateau voltage
V plateau
-
4.5
-
V
A
V GS=0V, V DS=30V,
f =1MHz
V DD=30V, V GS=10V,
I D=20A, R G,ext=3.5W
pF
ns
Gate Charge Characteristics2)
V DD=30V, I D=20A,
V GS=0 to 10V
nC
Reverse Diode
Diode continous forward current2)
IS
T C=25°C
-
-
40
Diode pulse current2)
I S,pulse
T C=25 °C, t p= 100 µs
-
-
241
Diode forward voltage
V SD
V GS=0V, I F=20A,
T j=25°C
-
0.8
1.1
V
Reverse recovery time2)
t rr
-
30
-
ns
Reverse recovery charge2)
Q rr
-
22
-
nC
V R=30V, I F=40A,
di F/dt =100A/µs
1)
Practically the current is limited by the overall system design including the customer-specific PCB.
2)
The parameter is not subject to production test - verified by design/characterization.
3)
The product can operate at a specified current based on best practice to minimze electromigration at the solder
joint. For rare events and inrush currents, the value may be exceeded.
4)
Device on a four-layer 2s2p FR4 PCB defined in accordance with JEDEC standards (JESD51-5-7). PCB is vertical
in still air.
Rev. 1.1
page 3
2021-03-18
IAUZ40N06S5N050
1 Power dissipation
2 Drain current
P tot = f(T C); V GS = 10 V
I D = f(T C); V GS = 10 V
80
100
90
80
60
70
Chip current
ID [A]
Ptot [W]
60
40
50
DC current
40
30
20
20
10
0
0
0
50
100
150
200
0
50
100
TC [°C]
150
200
TC [°C]
3 Safe operating area
4 Max. transient thermal impedance
I D = f(V DS); T C = 25 °C; D = 0
Z thJC = f(t p)
parameter: t p
parameter: D =t p/T
1000
101
1 µs
100
0.5
10 µs
100
ZthJC [K/W]
100 µs
ID [A]
150 µs
0.1
0.05
10-1
0.01
10
single pulse
10-2
1
10-3
0.1
1
10
100
VDS [V]
Rev. 1.1
10-6
10-5
10-4
10-3
10-2
10-1
100
tp [s]
page 4
2021-03-18
IAUZ40N06S5N050
5 Typ. output characteristics
6 Typ. drain-source on-state resistance
I D = f(V DS); T j = 25 °C
R DS(on) = f(I D); T j = 25 °C
parameter: V GS
parameter: V GS
200
30
10 V
7V
25
160
6V
5V
20
RDS(on) [mW]
ID [A]
120
5.5 V
80
15
5.5 V
10
5V
6V
40
7V
5
0
0
1
2
3
4
5
10 V
0
6
0
20
40
VDS [V]
60
80
100
ID [A]
7 Typ. transfer characteristics
8 Typ. drain-source on-state resistance
I D = f(V GS); V DS = 6V
R DS(on) = f(T j);
parameter: T j
parameter: ID, VGS
300
10
9
-55 °C
250
25 °C
VGS=7V, ID=10A
7
200
175 °C
RDS(on) [mW]
ID [A]
8
150
6
5
4
VGS=10V, ID=20A
100
3
2
50
1
0
1
2
3
4
5
6
7
VGS [V]
Rev. 1.1
0
-60
-20
20
60
100
140
180
Tj [°C]
page 5
2021-03-18
IAUZ40N06S5N050
9 Typ. gate threshold voltage
10 Typ. capacitances
V GS(th) = f(T j); V GS = V DS
C = f(V DS); V GS = 0 V; f = 1 MHz
parameter: I D
3.5
104
3
103
Ciss
Coss
C [pF]
VGS(th) [V]
290 µA
29 µA
102
2.5
Crss
2
1.5
101
-60
-20
20
60
100
140
0
180
10
20
30
40
50
60
VDS [V]
Tj [°C]
11 Typical forward diode characteristics
12 Avalanche characteristics
IF = f(VSD)
I AS= f(t AV)
parameter: T j
parameter: Tj(start)
100
103
25 °C
102
IF [A]
IAV [A]
100 °C
150 °C
10
101
175 °C
17525
°C°C 25 °C
100
0
0.2
0.4
0.6
0.8
1
1.2
1.4
VSD [V]
Rev. 1.1
1
0.1
1
10
100
1000
tAV [µs]
page 6
2021-03-18
IAUZ40N06S5N050
13 Avalanche energy
14 Drain-source breakdown voltage
E AS = f(T j)
V BR(DSS) = f(T j); I D = 1 mA
parameter: I D
66
250
64
10 A
200
EAS [mJ]
VBR(DSS) [V]
150
100
20 A
60
58
40 A
50
62
56
0
25
75
125
-55
175
-15
Tj [°C]
25
65
105
145
Tj [°C]
15 Typ. gate charge
16 Gate charge waveforms
V GS = f(Q gate); I D = 20 A pulsed
parameter: V DD
10
V GS
12 V
9
Qg
30 V
8
48V
7
VGS [V]
6
5
V gs(th)
4
3
2
Q g(th)
Q sw
Q gate
1
Q gs
0
0
2
4
6
Q gd
8 10 12 14 16 18 20 22 24
Qgate [nC]
Rev. 1.1
page 7
2021-03-18
IAUZ40N06S5N050
Package Outline
#######
Footprint
Packaging
Rev. 1.1
page 8
2021-03-18
