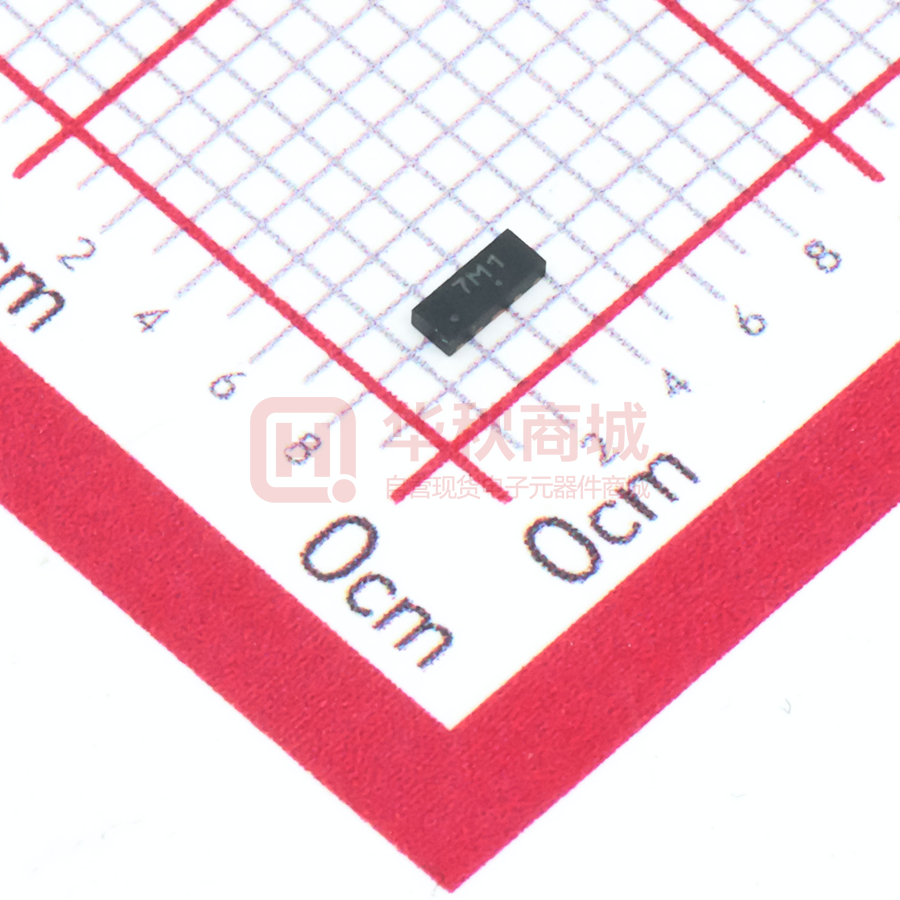

ESD7104MUTAG

ESD7104MUTAG

  • 厂商:

    ONSEMI(安森美)

  • 封装:

    UFDFN10_2.5X1MM

  • 描述:

    ESD保护 VRWM=5V VBR(Min)=5.5V VC=10V IPP=1A UFDFN10_2.5X1MM

  • 数据手册
  • 价格&库存
ESD7104MUTAG 数据手册
DATA SHEET www.onsemi.com ESD Protection Diode MARKING DIAGRAM Low Capacitance ESD Protection Diode for High Speed Data Line ESD7104 The ESD7104 surge protection is designed to protect high speed data lines from ESD. Ultra−low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow−through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance between high speed differential lines such as USB 3.0 and HDMI. UDFN10 CASE 517BB 7M MG G 7M = Specific Device Code (tbd) M = Date Code G = Pb−Free Package (Note: Microdot may be in either location) WDFNW10 CASE 515AH AAC M AAC = Specific Device Code M = Date Code Features • Low Capacitance (0.3 pF Typical, I/O to GND) • Low ESD Clamping Voltage • Protection for the Following IEC Standards: PIN CONFIGURATION AND SCHEMATIC IEC 61000−4−2 (Level 4) N/C N/C • UL Flammability Rating of 94 V−0 • SZESD7104MTWTAG − Wettable Flank Package for optimal GND N/C N/C 10 9 8 7 6 1 2 3 4 5 I/O I/O GND I/O I/O Automated Optical Inspection (AOI) • SZ Prefix for Automotive and Other Applications Requiring Unique • Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant I/O I/O Pin 1 Pin 2 I/O I/O Pin 4 Pin 5 Typical Applications • • • • • USB 3.0 eSATA 3.0 Thunderbolt (Light Peak) HDMI 1.3/1.4 Display Port GND Pin 3 = MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) Rating Symbol Value Unit Operating Junction Temperature Range TJ −55 to +125 °C Storage Temperature Range Tstg −55 to +150 °C Lead Solder Temperature − Maximum (10 Seconds) TL 260 °C ESD ESD ±15 ±15 kV kV IEC 61000−4−2 Contact (ESD) IEC 61000−4−2 Air (ESD) ORDERING INFORMATION See detailed ordering, marking and shipping information in the package dimensions section on page 9 of this data sheet. Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. See Application Note AND8308/D for further description of survivability specs. © Semiconductor Components Industries, LLC, 2016 August, 2021 − Rev. 7 1 Publication Order Number: ESD7104/D ESD7104 ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified) Parameter Symbol Reverse Working Voltage Conditions VRWM Breakdown Voltage Min Typ Max Unit 5.0 V I/O Pin to GND VBR IT = 1 mA, I/O Pin to GND 5.5 V Reverse Leakage Current IR VRWM = 5 V, I/O Pin to GND 1.0 mA Clamping Voltage (Note 1) VC IPP = 1 A, I/O Pin to GND (8 x 20 ms pulse) 10 V Clamping Voltage (Note 2) VC IEC61000−4−2, ±8 KV Contact Clamping Voltage (Note 3) VC Junction Capacitance Junction Capacitance See Figures 1 and 2 V IPP = ±8 A IPP = ±16 A 14.1 19.5 V CJ VR = 0 V, f = 1 MHz between I/O Pins 0.2 0.3 pF CJ VR = 0 V, f = 1 MHz between I/O Pins and GND 0.3 0.35 pF 80 10 70 0 60 −10 50 −20 VOLTAGE (V) VOLTAGE (V) Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 1. Surge current waveform per Figure 5. 2. For test procedure see Figures 3 and 4 and application note AND8307/D. 3. ANSI/ESD STM5.5.1 − 2008 Electrostatic Discharge Sensitivity Testing using Transmission Line Pulse (TLP) Model. TLP conditions: Z0 = 50 W, tp = 100 ns, tr = 4 ns, averaging window; t1 = 30 ns to t2 = 60 ns. 40 30 20 −30 −40 −50 10 −60 0 −70 −10 −20 0 20 40 60 80 100 120 −80 −20 140 0 20 40 60 80 100 120 TIME (ns) TIME (ns) Figure 1. IEC61000−4−2 +8 KV Contact Clamping Voltage Figure 2. IEC61000−4−2 −8 KV Contact Clamping Voltage www.onsemi.com 2 140 ESD7104 IEC61000−4−2 Waveform IEC 61000−4−2 Spec. Ipeak Level Test Voltage (kV) First Peak Current (A) Current at 30 ns (A) Current at 60 ns (A) 1 2 7.5 4 2 2 4 15 8 4 3 6 22.5 12 6 4 8 30 16 8 100% 90% I @ 30 ns I @ 60 ns 10% tP = 0.7 ns to 1 ns Figure 3. IEC61000−4−2 Spec Device ESD Gun Under Oscilloscope Test 50 W 50 W Cable Figure 4. Diagram of ESD Clamping Voltage Test Setup The following is taken from Application Note AND8308/D − Interpretation of Datasheet Parameters for ESD Devices. systems such as cell phones or laptop computers it is not clearly defined in the spec how to specify a clamping voltage at the device level. onsemi has developed a way to examine the entire voltage waveform across the ESD protection diode over the time domain of an ESD pulse in the form of an oscilloscope screenshot, which can be found on the datasheets for all ESD protection diodes. For more information on how onsemi creates these screenshots and how to interpret them please refer to AND8307/D. ESD Voltage Clamping For sensitive circuit elements it is important to limit the voltage that an IC will be exposed to during an ESD event to as low a voltage as possible. The ESD clamping voltage is the voltage drop across the ESD protection diode during an ESD event per the IEC61000−4−2 waveform. Since the IEC61000−4−2 was written as a pass/fail spec for larger % OF PEAK PULSE CURRENT 100 PEAK VALUE IRSM @ 8 ms tr 90 PULSE WIDTH (tP) IS DEFINED AS THAT POINT WHERE THE PEAK CURRENT DECAY = 8 ms 80 70 60 HALF VALUE IRSM/2 @ 20 ms 50 40 30 tP 20 10 0 0 20 40 t, TIME (ms) 60 Figure 5. 8 x 20 ms Pulse Waveform www.onsemi.com 3 80 22 −22 20 −20 18 −18 16 −16 CURRENT (A) CURRENT (A) ESD7104 14 12 10 8 −14 −12 −10 −8 6 −6 4 −4 2 −2 0 0 2 4 6 8 10 12 14 16 18 20 0 22 24 0 −2 −4 −6 −8 −10 −12 −14 −16 −18 −20 −22 −24 VOLTAGE (V) VOLTAGE (V) Figure 6. Positive TLP I−V Curve Figure 7. Negative TLP I−V Curve Transmission Line Pulse (TLP) Measurement L Transmission Line Pulse (TLP) provides current versus voltage (I−V) curves in which each data point is obtained from a 100 ns long rectangular pulse from a charged transmission line. A simplified schematic of a typical TLP system is shown in Figure 8. TLP I−V curves of ESD protection devices accurately demonstrate the product’s ESD capability because the 10s of amps current levels and under 100 ns time scale match those of an ESD event. This is illustrated in Figure 9 where an 8 kV IEC 61000−4−2 current waveform is compared with TLP current pulses at 8 A and 16 A. A TLP I−V curve shows the voltage at which the device turns on as well as how well the device clamps voltage over a range of current levels. S Attenuator ÷ 50 W Coax Cable 10 MW IM 50 W Coax Cable VM DUT VC Oscilloscope Figure 8. Simplified Schematic of a Typical TLP System Figure 9. Comparison Between 8 kV IEC 61000−4−2 and 8 A and 16 A TLP Waveforms www.onsemi.com 4 ESD7104 Without ESD With ESD7104 Figure 10. USB3.0 Eye Diagram with and without ESD7104. 5.0 Gb/s, 400 mVPP Without ESD With ESD7104 Figure 11. HDMI1.4 Eye Diagram with and without ESD7104. 3.4 Gb/s, 400 mVPP Without ESD With ESD7104 Figure 12. ESATA3.0 Eye Diagram with and without ESD7104. 6 Gb/s, 400 mVPP www.onsemi.com 5 ESD7104 S21 INSERTION LOSS (dB) 4 ESD7104 IO−GND 2 0 −2 −4 −6 −8 −10 1.E+06 1.E+07 1.E+08 1.E+09 FREQUENCY (Hz) Figure 13. ESD7104 Insertion Loss www.onsemi.com 6 1.E+10 ESD7104 USB 3.0 Type A Connector StdA_SSTX+ Vbus StdA_SSTX− ESD7104 D− ESD7L5.0 GND_DRAIN D+ StdA_SSRX+ GND StdA_SSRX− Figure 14. USB3.0 Standard A Connector Layout Diagram USB 3.0 Micro B Connector ESD7104 Vbus D− D+ ID GND ESD7104 MicB_SSTX− MicB_SSTX+ GND_DRAIN MicB_SSRX− MicB_SSRX+ Figure 15. USB3.0 Micro B Connector Layout Diagram www.onsemi.com 7 ESD7104 HDMI Type A Connector ESD7104 D2+ GND D2− D1+ GND D1− ESD7104 D0+ GND D0− CLK+ GND CLK− CEC N/C (or HEC_DAT – HDMI1.4) SCL SDA GND 5V HPD (and HEC_DAT – HDMI1.4) NUP4114 Figure 16. HDMI Layout Diagram e S ATA Connector GND A+ ESD7104 A− GND B− B+ GND Figure 17. eSATA Layout Diagram www.onsemi.com 8 ESD7104 DEVICE ORDERING INFORMATION Marking Package Shipping† ESD7104MUTAG 7M UDFN10 (Pb−Free) 3000 / Tape & Reel SZESD7104MUTAG 7M UDFN10 (Pb−Free) 3000 / Tape & Reel AAC WDFNW10 (Pb−Free) 3000 / Tape & Reel Device SZESD7104MTWTAG †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. www.onsemi.com 9 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS WDFNW10 2.5x1.0, 0.5P CASE 515AH ISSUE B DATE 03 AUG 2020 GENERIC MARKING DIAGRAM* XXXM XX = Specific Device Code M = Date Code *This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking. DOCUMENT NUMBER: DESCRIPTION: 98AON08744H WDFNW10 2.5x1.0, 0.5P Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2018 www.onsemi.com MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS UDFN10 2.5x1, 0.5P CASE 517BB−01 ISSUE O DATE 17 NOV 2009 SCALE 4:1 L L D PIN ONE REFERENCE 0.10 C 2X 2X A B L1 ÍÍÍ ÍÍÍ 0.10 C DETAIL A TOP VIEW EXPOSED Cu DETAIL B A3 0.10 C 10X OPTIONAL CONSTRUCTIONS E A A1 0.08 C A1 C SIDE VIEW 2X DETAIL A b2 1 10 10X MILLIMETERS MIN MAX 0.45 0.55 0.00 0.05 0.13 REF 0.15 0.25 0.35 0.45 2.50 BSC 1.00 BSC 0.50 BSC 0.30 0.40 --0.05 GENERIC MARKING DIAGRAM* XXX = Specific Device Code M = Date Code G = Pb−Free Package (Note: Microdot may be in either location) b 0.10 C A 0.05 C BOTTOM VIEW A3 DIM A A1 A3 b b2 D E e L L1 XX MG G L 6 8X DETAIL B OPTIONAL CONSTRUCTION SEATING PLANE 5 e ÇÇ ÇÇ ÉÉ MOLD CMPD NOTES: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. DIMENSION b APPLIES TO PLATED TERMINAL AND IS MEASURED BETWEEN 0.15 AND 0.30mm FROM TERMINAL. B *This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “ G”, may or may not be present. NOTE 3 RECOMMENDED SOLDERING FOOTPRINT* 10X 2X 0.50 0.45 1.30 PACKAGE OUTLINE 8X 0.50 PITCH 0.25 DIMENSIONS: MILLIMETERS *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. DOCUMENT NUMBER: DESCRIPTION: 98AON47059E UDFN10 2.5X1, 0.5P Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com onsemi Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative
