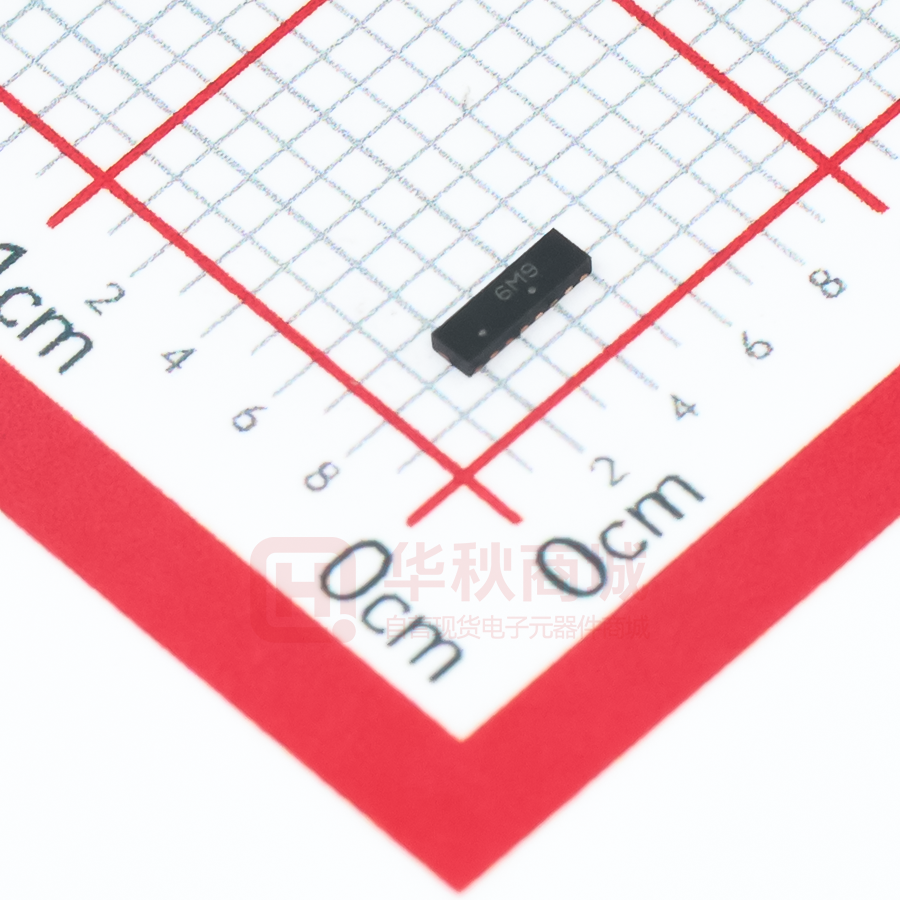

ESD7016MUTAG

ESD7016MUTAG

  • 厂商:

    ONSEMI(安森美)

  • 封装:

    UDFN10_3.3X1MM

  • 描述:

    ESD抑制器/TVS二极管 VRWM=5V VBR(Min)=5.5V VC=20.5V@IPP=16A

  • 数据手册
  • 价格&库存
ESD7016MUTAG 数据手册
ESD7016, SZESD7016 ESD Protection Diode Low Capacitance, USB 3.0 The ESD7016 surge protection is specifically designed to protect USB3.0 interfaces by integrating two Superspeed pairs, D+, D−, and Vbus lines into a single protection product. Ultra−low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow−through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance between high speed differential lines. • Low Capacitance (0.15 pF Typical, I/O to GND) • Protection for the Following IEC Standards: • MARKING DIAGRAM UDFN8 CASE 517CB 6M MG G 1 Features • • www.onsemi.com IEC 61000−4−2 (Level 4) Low ESD Clamping Voltage SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable This is a Pb−Free Device 6M = Specific Device Code M = Date Code G = Pb−Free Package (Note: Microdot may be in either location) PIN CONFIGURATION AND SCHEMATIC I/O 1 Typical Applications I/O 2 • USB 3.0 N/C Vbus or Ground I/O 3 MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) I/O 4 Rating Symbol Value Unit Operating Junction Temperature Range TJ −55 to +125 °C Storage Temperature Range Tstg −55 to +150 °C I/O 5 Lead Solder Temperature − Maximum (10 Seconds) TL 260 °C I/O 6 ESD ESD ±15 ±15 kV kV IEC 61000−4−2 Contact (ESD) IEC 61000−4−2 Air (ESD) Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. N/C ORDERING INFORMATION Device Package Shipping ESD7016MUTAG UDFN8 (Pb−Free) 3000 / Tape & Reel SZESD7016MUTAG UDFN8 (Pb−Free) 3000 / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D. © Semiconductor Components Industries, LLC, 2013 October, 2017 − Rev. 4 1 Publication Order Number: ESD7016/D ESD7016, SZESD7016 ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified) Parameter Symbol Reverse Working Voltage Conditions VRWM Breakdown Voltage Min Typ Max Unit 5.0 V I/O Pin to GND VBR IT = 1 mA, I/O Pin to GND 5.5 V Reverse Leakage Current IR VRWM = 5 V, I/O Pin to GND 1.0 mA Clamping Voltage (Note 1) VC IPP = 1 A, I/O Pin to GND (8 x 20 ms pulse) 10 V Clamping Voltage (Note 2) VC IEC61000−4−2, ±8 kV Contact Clamping Voltage TLP (Note 3) See Figures 6 through 9 VC IPP = ±8 A IPP = ±16 A 14.6 20.5 Junction Capacitance CJ VR = 0 V, f = 1 MHz between I/O Pins and GND 0.15 Junction Capacitance Difference DCJ VR = 0 V, f = 1 MHz between I/O Pins and GND 0.03 See Figures 1 and 2 V 0.20 pF pF 1. Surge current waveform per Figure 5. 2. For test procedure see Figures 3 and 4 and application note AND8307/D. 3. ANSI/ESD STM5.5.1 − Electrostatic Discharge Sensitivity Testing using Transmission Line Pulse (TLP) Model. TLP conditions: Z0 = 50 W, tp = 100 ns, tr = 4 ns, averaging window; t1 = 30 ns to t2 = 60 ns. 80 0 70 −10 60 −20 VOLTAGE (V) VOLTAGE (V) 90 50 40 30 20 −30 −40 −50 −60 −70 10 −80 0 −90 −10 −20 0 20 40 60 80 100 120 −100 −20 140 0 20 40 60 80 100 120 TIME (ns) TIME (ns) Figure 1. IEC61000−4−2 +8 KV Contact Clamping Voltage Figure 2. IEC61000−4−2 −8 KV Contact Clamping Voltage www.onsemi.com 2 140 ESD7016, SZESD7016 IEC61000−4−2 Waveform IEC 61000−4−2 Spec. Ipeak Level Test Voltage (kV) First Peak Current (A) Current at 30 ns (A) Current at 60 ns (A) 1 2 7.5 4 2 2 4 15 8 4 3 6 22.5 12 6 4 8 30 16 8 100% 90% I @ 30 ns I @ 60 ns 10% tP = 0.7 ns to 1 ns Figure 3. IEC61000−4−2 Spec Device ESD Gun Under Oscilloscope Test 50 W 50 W Cable Figure 4. Diagram of ESD Clamping Voltage Test Setup The following is taken from Application Note AND8308/D − Interpretation of Datasheet Parameters for ESD Devices. systems such as cell phones or laptop computers it is not clearly defined in the spec how to specify a clamping voltage at the device level. ON Semiconductor has developed a way to examine the entire voltage waveform across the ESD protection diode over the time domain of an ESD pulse in the form of an oscilloscope screenshot, which can be found on the datasheets for all ESD protection diodes. For more information on how ON Semiconductor creates these screenshots and how to interpret them please refer to AND8307/D and AND8308/D. ESD Voltage Clamping For sensitive circuit elements it is important to limit the voltage that an IC will be exposed to during an ESD event to as low a voltage as possible. The ESD clamping voltage is the voltage drop across the ESD protection diode during an ESD event per the IEC61000−4−2 waveform. Since the IEC61000−4−2 was written as a pass/fail spec for larger % OF PEAK PULSE CURRENT 100 PEAK VALUE IRSM @ 8 ms tr 90 PULSE WIDTH (tP) IS DEFINED AS THAT POINT WHERE THE PEAK CURRENT DECAY = 8 ms 80 70 60 HALF VALUE IRSM/2 @ 20 ms 50 40 30 tP 20 10 0 0 20 40 t, TIME (ms) 60 Figure 5. 8 x 20 ms Pulse Waveform www.onsemi.com 3 80 22 −22 20 −20 18 −18 16 −16 CURRENT (A) CURRENT (A) ESD7016, SZESD7016 14 12 10 8 −14 −12 −10 −8 6 −6 4 −4 2 −2 0 0 2 4 6 8 0 10 12 14 16 18 20 22 24 26 0 2 4 6 8 10 12 14 16 18 20 22 24 26 VOLTAGE (V) VOLTAGE (V) Figure 6. Positive TLP I−V Curve Figure 7. Negative TLP I−V Curve Transmission Line Pulse (TLP) Measurement L Transmission Line Pulse (TLP) provides current versus voltage (I−V) curves in which each data point is obtained from a 100 ns long rectangular pulse from a charged transmission line. A simplified schematic of a typical TLP system is shown in Figure 8. TLP I−V curves of ESD protection devices accurately demonstrate the product’s ESD capability because the 10s of amps current levels and under 100 ns time scale match those of an ESD event. This is illustrated in Figure 9 where an 8 kV IEC 61000−4−2 current waveform is compared with TLP current pulses at 8 A and 16 A. A TLP I−V curve shows the voltage at which the device turns on as well as how well the device clamps voltage over a range of current levels. S Attenuator ÷ 50 W Coax Cable 10 MW IM 50 W Coax Cable VM DUT VC Oscilloscope Figure 8. Simplified Schematic of a Typical TLP System Figure 9. Comparison Between 8 kV IEC 61000−4−2 and 8 A and 16 A TLP Waveforms www.onsemi.com 4 ESD7016, SZESD7016 Without ESD7016 With ESD7016 Figure 10. USB3.0 Eye Diagram with and without ESD7016, 5 Gb/s S21 INSERTION LOSS (dB) 4 2 ESD7016 IO−GND 0 −2 −4 −6 −8 −10 1.E+06 1.E+07 1.E+08 1.E+09 FREQUENCY (Hz) Figure 11. ESD7016 Insertion Loss www.onsemi.com 5 1.E+10 ESD7016, SZESD7016 I/O Pin 1 I/O Pin 2 I/O Pin 4 I/O Pin 5 I/O Pin 7 I/O Pin 8 Pinout Option 1: 2 Ground connections between high speed pairs to minimize crosstalk. USB 3.0 Type A Connector StdA_SSTX+ Vbus StdA_SSTX− D− GND Pin 3 GND_DRAIN GND Pin 6 D+ StdA_SSRX+ = GND StdA_SSRX− I/O Pin 1 I/O Pin 2 VBUS Pin 3 I/O Pin 4 I/O Pin 5 I/O Pin 7 I/O Pin 8 Pinout Option 2: Single ground connection and Vbus protection for fully integrated solution. USB 3.0 Type A Connector StdA_SSTX+ Vbus StdA_SSTX− Vbus D− GND_DRAIN GND Pin 6 D+ StdA_SSRX+ = GND StdA_SSRX− Figure 12. USB3.0 Type A Connector Layout Diagrams www.onsemi.com 6 ESD7016, SZESD7016 USB 3.0 Micro B Connector Vbus ESD9X D− D+ ID GND ESD7016 N/C ID N/C MicB_SSTX− MicB_SSTX+ GND_DRAIN MicB_SSRX− MicB_SSRX+ Figure 13. USB3.0 Micro B Connector Layout Diagram www.onsemi.com 7 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS UDFN8, 3.3x1.0, 0.4P CASE 517CB ISSUE O 1 SCALE 4:1 PIN ONE REFERENCE 2X 0.10 C ÉÉ ÉÉ 0.10 C 2X L1 DETAIL A E ALTERNATE CONSTRUCTIONS ÉÉÉ ÇÇÇ TOP VIEW EXPOSED Cu A DETAIL B 0.05 C (A3) MOLD CMPD DETAIL B 0.05 C A1 SIDE VIEW 8X DETAIL A 1 e/2 e 7X b 0.10 M C A B 0.05 M C NOTE 3 G2 BOTTOM VIEW 0.10 M C A B 0.05 M C 1.66 2X DIM A A1 A3 b D D2 E E2 e G2 L L1 L2 MILLIMETERS MIN MAX 0.45 0.55 0.00 0.05 0.13 REF 0.15 0.25 3.30 BSC 0.25 0.45 1.00 BSC 0.45 0.55 0.40 BSC 1.19 BSC 0.20 0.30 −−− 0.15 0.30 0.40 GENERIC MARKING DIAGRAM* XX = Specific Device Code M = Date Code G = Pb−Free Package (Note: Microdot may be in either location) RECOMMENDED SOLDERING FOOTPRINT* *This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “ G”, may or may not be present. 2X 0.65 0.50 NOTES: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. DIMENSION b APPLIES TO PLATED TERMINAL AND IS MEASURED BETWEEN 0.15 AND 0.20 MM FROM TERMINAL TIP. XX MG G L D2 2X E2 ALTERNATE CONSTRUCTION SEATING PLANE C 8 L2 2X L L A B D DATE 27 SEP 2011 1.20 0.50 8X 0.25 7X 0.40 PITCH 0.40 DIMENSION: MILLIMETERS *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. DOCUMENT NUMBER: DESCRIPTION: 98AON59259E UDFN8, 3.3X1.0, 0.4P Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com onsemi Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative
