STTH30R06C
Turbo 2 ultrafast high voltage rectifier
Datasheet - production data
Description
A1
K
This device using ST Turbo 2 600 V technology,
is specially suited as boost diode in continuous
mode power factor corrections and hard
switching conditions.
A2
The device is also intended for use as a free
wheeling diode in power supplies and other
power switching applications.
Table 1: Device summary
A2

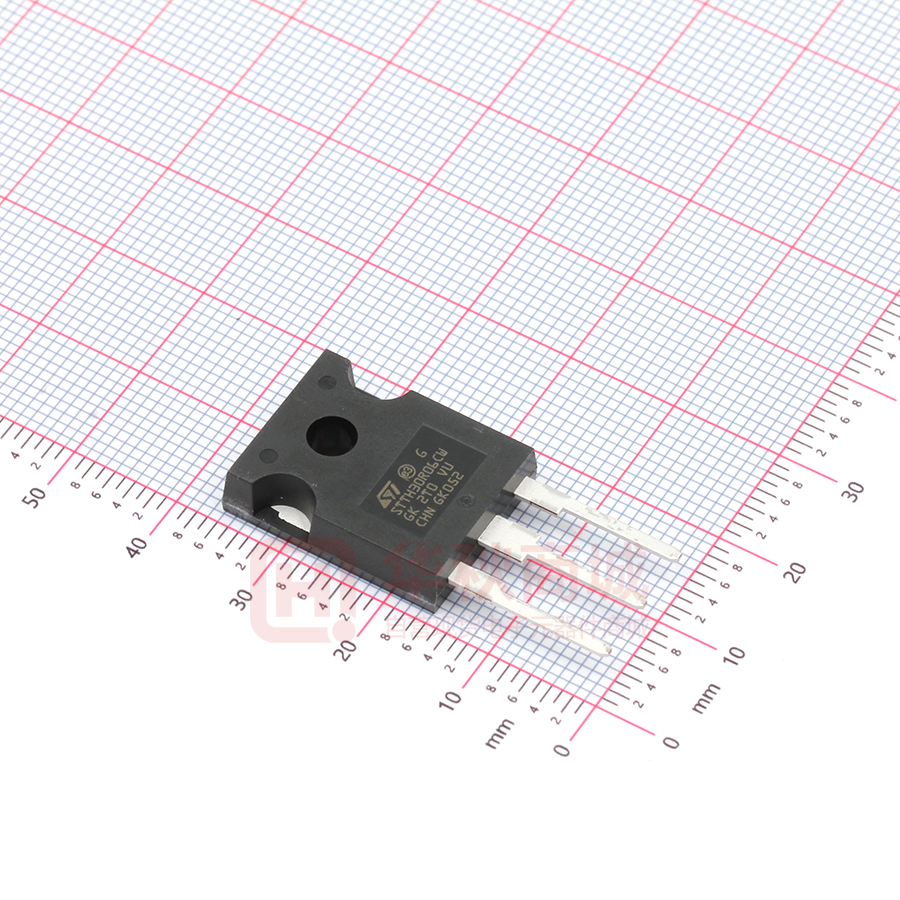

TO-247
Symbol
Value
IF(AV)
2 x 15 A
VRRM
600 V
Features
IRM (typ.)
8A
Tj (max.)
175 °C
VF (typ.)
1.8 V
trr (max.)
50 ns
K
A1
Ultrafast switching
Low reverse current
Low thermal resistance
Reduced switching and conduction losses
February 2018
DocID7975 Rev 3
This is information on a product in full production.
1/9
www.st.com
Characteristics
1
STTH30R06C
Characteristics
Table 2: Absolute ratings (limiting values, per diode)
Symbol
Parameter
Value
Unit
VRRM
Repetitive peak reverse voltage
600
V
IF(RMS)
Forward rms current
30
A
IF(AV)
Average forward current
IFSM
Surge non repetitive forward
current
Tstg
Storage temperature range
Tj
Tc = 115 °C, δ = 0.5, per diode
15
Tc = 100 °C, δ = 0.5, per device
30
tp = 10 ms sinusoidal
120
A
-65 to +175
°C
175
°C
Max. value
Unit
Maximum operating junction temperature
A
Table 3: Thermal parameters
Symbol
Parameter
Rth(j-c)
Junction to case
Rth(c)
Coupling
Per diode
1.5
Total
1.0
°C/W
0.5
Table 4: Static electrical characteristics (per diode)
Symbol
Parameter
Test conditions
IR(1)
Reverse leakage current
VF(2)
Forward voltage drop
Tj = 25 °C
Tj = 125 °C
Tj = 25 °C
Tj = 125 °C
VR = VRRM
IF = 15 A
Notes:
(1)Pulse
test: tp = 5 ms, δ < 2%
(2)Pulse
test: tp = 380 μs, δ < 2 %
To evaluate the conduction losses, use the following equation:
P = 1.16 x IF(AV) + 0.043 x IF2(RMS)
2/9
DocID7975 Rev 3
Min.
Typ.
-
60
70
-
Max.
800
2.9
1.4
1.8
Unit
µA
V
STTH30R06C
Characteristics
Table 5: Dynamic electrical characteristics
Symbol
trr
IRM
S factor
Parameters
Test conditions
Reverse recovery time
Tj = 25 °C
Reverse recovery current
Softness factor
Tj = 125 °C
Qrr
Reverse recovery charges
tfr
Forward recovery time
VFP
Forward recovery voltage
Tj = 25 °C
DocID7975 Rev 3
Min.
IF = 0.5 A,
Irr = 0.25 A,
IR = 1 A
-
IF = 1 A,
dIF/dt = -50 A/μs,
VR = 30 V
-
IF = 15 A,
dIF/dt = -200 A/μs,
VR = 400 V
IF = 15 A,
dIF/dt = 120 A/μs,
VFR = 1.1 x VFmax
Typ.
Max.
Unit
30
ns
50
-
7.5
-
0.15
-
220
9.0
A
nC
-
200
ns
-
6
V
3/9
Characteristics
1.1
STTH30R06C
Characteristics (curves)
Figure 1: Conduction losses versus average
current (per leg)
Figure 2: Forward voltage drop versus forward
current (per leg)
P(W)
40
δ = 0.05
δ = 0.2
δ = 0.1
120
δ = 0.5
35
IFM(A)
110
δ=1
30
Tj = 125 °C
(Maximum values)
100
90
25
80
Tj = 125 °C
(Typical values)
70
20
60
15
50
10
Tj = 25 °C
(Maximum values)
40
T
30
5
IF(AV)(A)
δ =tp/T
tp
20
0
10
0
2
4
6
8
10
12
14
16
18
20
VFM(V)
0
0
Figure 3: Relative variation of thermal impedance
junction to case versus pulse duration
1.0
0.9
Zth(j-c) /Rth(j-c)
Single pulse
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
t P(s)
0.0
1.E-03
1.E-02
1.E-01
1.E+00
1
90
t RR(ns)
80
4
5
6
IRM(A)
28
26
24
22
20
18
16
14
12
10
8
6
4
2
0
V R = 400 V
T j = 125 °C
IF = 2 x IF(AV)
IF = IF(AV)
IF = 0.5 x IF(AV)
IF = 0.25 x IF(AV)
dIF/dt(A/µs)
200
400
600
800
1000
Figure 6: Reverse recovery charges versus dIF/dt
(typical values, per leg)
600
V R = 400 V
T j = 125 °C
3
Figure 4: Peak reverse recovery current versus
dIF/dt (typical values, per leg)
0
Figure 5: Reverse recovery time versus dIF/dt
(typical values, per leg)
2
Q RR(nC)
VR = 400 V
Tj = 125 °C
550
IF = 2 x IF(AV)
500
70
IF = 2 x IF(AV)
450
60
IF = IF(AV)
400
IF = IF(AV)
IF = 0.5 x IF(AV)
350
50
300
40
250
30
200
IF = 0.5 x IF(AV)
150
20
100
10
dIF/dt(A/µs)
0
0
4/9
200
400
600
800
50
1000
DocID7975 Rev 3
dIF/dt(A/µs)
0
0
200
400
600
800
1000
STTH30R06C
Characteristics
Figure 7: Softness factor versus dIF/dt (typical
values, per leg)
0.35
Figure 8: Relative variation of dynamic parameters
versus junction temperature
Sfactor
2.50
IF ≤ 2 x IF(AV)
V R = 400 V
T j = 125 °C
0.30
IF = IF(AV)
V R = 400 V
Reference: T j = 125 °C
2.25
S factor
2.00
1.75
1.50
0.25
1.25
1.00
0.20
IRM
0.75
0.50
0.15
Q RR
0.25
dIF/dt(A/µs)
0.10
0
200
400
600
800
25
1000
Figure 9: Transient peak forward voltage versus
dIF/dt (typical values, per leg)
11
VFP(V)
50
75
100
t FR(ns)
IF = IF(AV)
V FR = 1.1 x V F max.
T j = 125 °C
200
9
180
8
160
7
140
6
120
5
100
4
80
3
60
2
125
Figure 10: Forward recovery time versus dIF/dt
(typical values, per leg)
220
IF = IF(AV)
T j = 125 °C
10
Tj (°C)
0.00
40
1
20
dIF/dt(A/µs)
0
dIF/dt(A/µs)
0
0
100
200
300
400
500
0
100
200
300
400
500
Figure 11: Junction capacitance versus reverse voltage applied (typical values, per leg)
1000
C(pF)
F = 1 MHz
Vosc = 30 mV RMS
T j = 25 °C
100
VR(V)
10
1
10
DocID7975 Rev 3
100
1000
5/9
Package information
2
STTH30R06C
Package information
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK ®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK® is an ST trademark.
2.1
Epoxy meets UL94, V0
Cooling method: by conduction (C)
Recommended torque values: 0.8 N·m
Maximum torque value: 1.0 N·m
TO-247 package information
Figure 12: TO-247 package outline
6/9
DocID7975 Rev 3
STTH30R06C
Package information
Table 6: TO-247 package mechanical data
Dimensions
Ref.
Millimeters
Min.
Typ.
Inches
Max.
Min.
Typ.
Max.
A
4.85
5.15
0.191
0.203
A1
2.20
2.60
0.086
0.102
b
1.00
1.40
0.039
0.055
b1
2.00
2.40
0.078
0.094
b2
3.00
3.40
0.118
0.133
c
0.40
0.80
0.015
0.031
D(1)
19.85
20.15
0.781
0.793
E
15.45
15.75
0.608
0.620
e
5.30
5.60
0.209
L
14.20
14.80
0.559
0.582
L1
3.70
4.30
0.145
0.169
L2
5.45
18.50
0.215
0.220
0.728
ØP(2)
3.55
3.65
0.139
0.143
ØR
4.50
5.50
0.177
0.217
S
5.30
5.70
0.209
5.50
0.216
0.224
Notes:
(1)Dimension
(2)Resin
D plus gate protusion does not exceed 20.5 mm
thickness around the mounting hole is not less than 0.9 mm.
DocID7975 Rev 3
7/9
Ordering information
3
STTH30R06C
Ordering information
Table 7: Ordering information
4
Order code
Marking
Package
Weight
Base qty.
Delivery mode
STTH30R06CW
STTH30R06CW
TO-247
4.36 g
30
Tube
Revision history
Table 8: Document revision history
8/9
Date
Revision
Changes
July-2001
1
Last issue.
18-Jun-2014
2
Updated title. ECOPACK statement updated.
16-Feb-18
3
Updated Section 1.1: "Characteristics (curves)".
DocID7975 Rev 3
STTH30R06C
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST
products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the
design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2018 STMicroelectronics – All rights reserved
DocID7975 Rev 3
9/9
