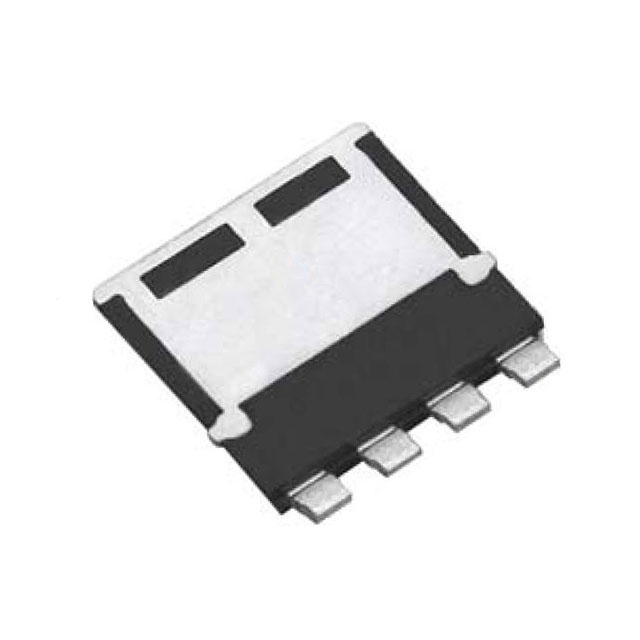

SQJQ466E www.vishay.com Vishay Siliconix Automotive N-Channel 60 V (D-S) 175 °C MOSFET FEATURES PowerPAK® 8 x 8L Single • TrenchFET® power MOSFET • AEC-Q101 qualified • 100 % Rg and UIS tested D • Thin 1.9 mm height 8 m m m 1 m 8.1 Top View 4 S 3 S 2 S 1 G • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 D Bottom View PRODUCT SUMMARY VDS (V) 60 RDS(on) () at VGS = 10 V ID (A) 200 Configuration Package G 0.0019 Single S PowerPAK 8 x 8L N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL LIMIT Drain-source voltage VDS 60 Gate-source voltage VGS ± 20 Continuous drain current TC = 25 °C a TC = 125 °C Continuous source current (diode conduction) Pulsed drain current b Single pulse avalanche current Single pulse avalanche energy Maximum power dissipation L = 0.1 mH TC = 25 °C TC = 125 °C Operating junction and storage temperature range ID 118 200 IDM 500 IAS 75 EAS 281 TJ, Tstg Soldering recommendations (peak temperature) d, e V 200 IS PD UNIT 150 50 -55 to +175 260 A mJ W °C THERMAL RESISTANCE RATINGS PARAMETER Junction-to-ambient Junction-to-case (drain) PCB mount c SYMBOL LIMIT RthJA 50 RthJC 1 UNIT °C/W Notes a. Package limited. b. Pulse test; pulse width  300 μs, duty cycle  2 %. c. When mounted on 1" square PCB (FR4 material). d. See solder profile (www.vishay.com/doc?73257). The PowerPAK 8 x 8L is a leadless package. The end of the lead terminal is exposed copper (not plated) as a result of the singulation process in manufacturing. A solder fillet at the exposed copper tip cannot be guaranteed and is not required to ensure adequate bottom side solder interconnection. e. Rework conditions: manual soldering with a soldering iron is not recommended for leadless components. S16-2420-Rev. A, 28-Nov-16 Document Number: 75138 1 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SQJQ466E www.vishay.com Vishay Siliconix SPECIFICATIONS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNIT Static Drain-source breakdown voltage VDS VGS = 0, ID = 250 μA 60 - - VGS(th) VDS = VGS, ID = 250 μA 2.5 3 3.5 Gate-source leakage IGSS VDS = 0 V, VGS = ± 20 V - - ± 100 Zero gate voltage drain current IDSS Gate-source threshold voltage On-state drain current a Drain-source on-state resistance a Forward transconductance b ID(on) RDS(on) gfs VGS = 0 V VDS = 60 V - - 1 VGS = 0 V VDS = 60 V, TJ = 125 °C - - 50 VGS = 0 V VDS = 60 V, TJ = 175 °C - - 150 VGS = 10 V VDS  5 V 100 - - VGS = 10 V ID = 10 A - 0.0017 0.0019 VGS = 10 V ID = 10 A, TJ = 125 °C - - 0.0030 VGS = 10 V ID = 10 A, TJ = 175 °C - - 0.0035 - 140 - - 8170 10 210 - 3756 4700 VDS = 15 V, ID = 20 A V nA μA A  S Dynamic b Input capacitance Ciss Output capacitance Coss Reverse transfer capacitance Crss - 70 88 Total gate charge c Qg - 135 180 - 47 - - 14 - f = 1 MHz 0.5 0.9 1.5 - 24 30 VDD = 30 V, RL = 3  ID  10 A, VGEN = 10 V, Rg = 1  - 8 10 - 47 58 - 15 19 - - 300 A - 0.82 1.2 V Gate-source charge c Qgs Gate-drain charge c Qgd Gate resistance Rg Turn-on delay time c Rise time c Turn-off delay time c Fall time c VGS = 0 V VDS = 25 V, f = 1 MHz VGS = 10 V VDS = 30 V, ID = 10 A td(on) tr td(off) tf pF nC  ns Source-Drain Diode Ratings and Characteristics b Pulsed current a ISM Forward voltage VSD IF = 50 A, VGS = 0 Notes a. Pulse test; pulse width  300 μs, duty cycle  2 %. b. Guaranteed by design, not subject to production testing. c. Independent of operating temperature.      Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. S16-2420-Rev. A, 28-Nov-16 Document Number: 75138 2 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SQJQ466E www.vishay.com Vishay Siliconix TYPICAL CHARACTERISTICS (TA = 25 °C, unless otherwise noted) Axis Title Axis Title 200 10000 10000 120 VGS = 10 V thru 6 V 100 40 1000 80 1st line 2nd line 80 2nd line ID - Drain Current (A) 1000 120 1st line 2nd line 2nd line ID - Drain Current (A) 100 VGS = 5 V 160 60 40 100 TC = 25 °C 20 TC = -55 °C TC = 125 °C 0 0 10 0 6 12 18 24 30 10 0 2 4 VGS - Gate-to-Source Voltage (V) 2nd line Output Characteristics Transfer Characteristics Axis Title Axis Title 80 100 TC = 125 °C 40 5 10 15 20 0.004 1000 0.003 0.002 VGS = 6 V 0.001 VGS = 10 V 25 10 0 20 40 60 80 100 ID - Drain Current (A) 2nd line ID - Drain Current (A) 2nd line Transconductance On-Resistance vs. Drain Current Axis Title 10 Ciss 1000 1st line 2nd line 7200 Coss 100 2400 Crss 0 10 24 36 48 60 10000 ID = 10 A VDS = 30 V 8 1000 6 1st line 2nd line 9600 2nd line VGS - Gate-to-Source Voltage (V) 10000 4800 4 100 2 0 10 0 30 60 90 120 VDS - Drain-to-Source Voltage (V) 2nd line Qg - Total Gate Charge (nC) 2nd line Capacitance Gate Charge S16-2420-Rev. A, 28-Nov-16 120 Axis Title 12 000 12 100 0.000 10 0 10000 1st line 2nd line 1000 120 2nd line RDS(on) - On-Resistance (Ω) TC = -55 °C TC = 25 °C 1st line 2nd line 2nd line gfs - Transconductance (S) 160 10 0.005 10000 0 2nd line C - Capacitance (pF) 8 VDS - Drain-to-Source Voltage (V) 2nd line 200 0 6 150 Document Number: 75138 3 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SQJQ466E www.vishay.com Vishay Siliconix TYPICAL CHARACTERISTICS (TA = 25 °C, unless otherwise noted) Axis Title Axis Title 100 10000 10000 VGS = 10 V ID = 20 A 1.7 1.1 100 VGS = 6 V 0.8 0.5 0 25 50 0.1 100 0.01 0.001 10 -50 -25 75 100 125 150 175 10 0 0.2 0.4 0.6 0.8 1.0 1.2 TJ - Junction Temperature (°C) 2nd line VSD - Source-to-Drain Voltage (V) 2nd line On-Resistance vs. Junction Temperature Source Drain Diode Forward Voltage Axis Title Axis Title 0.010 10000 1.0 10000 0.5 0.004 100 TJ = 150 °C 0.002 ID = 5 mA 0 1000 1st line 2nd line 1000 0.006 2nd line VGS(th) Variance (V) 0.008 1st line 2nd line 2nd line RDS(on) - On-Resistance (Ω) 1000 TJ = 25 °C TJ = 150 °C 1 1st line 2nd line 1000 1.4 2nd line IS - Source Current (A) 10 1st line 2nd line 2nd line RDS(on) - On-Resistance (Normalized) 2.0 -0.5 -1.0 100 ID = 250 μA -1.5 TJ = 25 °C 0.000 -2.0 10 0 2 4 6 8 10 10 -50 -25 0 25 75 100 125 150 175 VGS - Gate-to-Source Voltage (V) 2nd line TJ - Temperature (°C) 2nd line On-Resistance vs. Gate-to-Source Voltage Threshold Voltage Axis Title Axis Title 75 1000 10000 10000 IDM limited ID = 1 mA 100 69 100 10 μs 1 ms 10 ms 100 ms, 1 s, 10 s, DC Limited by RDS(on) (1) 1 100 BVDSS limited 0.1 67 1000 100 μs 10 1st line 2nd line 1000 71 2nd line ID - Drain Current (A) 73 1st line 2nd line 2nd line VDS - Drain-to-Source Voltage (V) 50 TC = 25 °C Single pulse 65 10 -50 -25 0 25 50 75 100 125 150 175 TJ - Junction Temperature (°C) 2nd line Drain Source Breakdown vs. Junction Temperature S16-2420-Rev. A, 28-Nov-16 0.01 0.01 (1) 0.1 1 10 100 10 1000 VDS - Drain-to-Source Voltage (V) VGS > minimum VGS at which RDS(on) is specified Safe Operating Area Document Number: 75138 4 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SQJQ466E www.vishay.com Vishay Siliconix THERMAL RATINGS (TA = 25 °C, unless otherwise noted) 2 Normalized Effective Transient Thermal Impedance 1 Duty Cycle = 0.5 0.2 0.1 0.1 0.05 0.02 Single Pulse 0.01 10-4 10-3 10-2 10-1 1 10 100 1000 Square Wave Pulse Duration (s) Normalized Thermal Transient Impedance, Junction-to-Ambient 2 Normalized Effective Transient Thermal Impedance 1 Duty Cycle = 0.5 0.2 0.1 0.1 0.05 0.02 Single Pulse 0.01 10 -4 10 -3 10 -2 10 -1 1 10 100 Square Wave Pulse Duration (s) Normalized Thermal Transient Impedance, Junction-to-Case                       Vishay Siliconix maintains worldwide manufacturing capability. Products may be manufactured at one of several qualified locations. Reliability data for Silicon Technology and Package Reliability represent a composite of all qualified locations. For related documents such as package/tape drawings, part marking, and reliability data, see www.vishay.com/ppg?75138. S16-2420-Rev. A, 28-Nov-16 Document Number: 75138 5 For technical questions, contact: automostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Package Information www.vishay.com Vishay Siliconix PowerPAK® 8 x 8L Case Outline D2 E5 L1 D3 K D3 D7 D5 D5 D7 D5 E1 E W3 W2 W1 D5 E2 E3 b2 K F Bottom view (single) 0.25 Gauge line Top view (single) E5 L θ e W4 D1 D E4 E1 E b1 D5 D4 A2 A1 b D6 E2 E3 W4 D6 W W3 W2 W1 D5 E4 b2 D4 b b1 D1 D e Bottom view (dual) DIM. A C A3 Top view (dual) MILLIMETERS INCHES MIN. NOM. MAX. MIN. NOM. A 1.70 1.80 1.90 0.067 0.071 MAX. 0.075 A1 0.00 0.08 0.13 0.000 0.003 0.005 A2 0.25 0.30 0.35 0.010 0.012 0.014 A3 0.55 0.62 0.70 0.022 0.024 0.028 b 0.92 1.00 1.08 0.036 0.039 0.043 b1 1.02 1.10 1.18 0.040 0.043 0.046 b2 7.80 7.90 8.00 0.307 0.311 0.315 c 0.20 0.25 0.30 0.008 0.010 0.012 D 8.00 8.10 8.25 0.315 0.319 0.325 D1 7.80 7.90 8.00 0.307 0.311 0.315 D2 6.70 6.80 6.90 0.264 0.268 0.272 D3 2.85 2.95 3.05 0.112 0.116 0.120 D4 6.11 6.21 6.31 0.241 0.244 0.248 D5 0.37 0.47 0.57 0.015 0.019 0.022 D6 2.49 2.59 2.69 0.098 0.102 0.106 D7 1.76 1.86 1.96 0.069 0.073 0.077 Revision: 16-Oct-17 Document Number: 67734 1 For technical questions, contact: pmostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Package Information www.vishay.com DIM. Vishay Siliconix MILLIMETERS INCHES MIN. NOM. MAX. MIN. NOM. MAX. e 1.95 2.00 2.05 0.077 0.079 0.081 E 7.90 8.00 8.10 0.311 0.315 0.319 E1 6.12 6.22 6.32 0.241 0.245 0.249 E2 3.94 4.04 4.14 0.140 0.159 0.163 E3 4.69 4.79 4.89 0.185 0.189 0.193 E4 3.23 3.33 3.43 0.127 0.131 0.135 E5 0.65 0.75 0.85 0.026 0.030 0.033 F 0.00 0.10 0.15 0.000 0.004 0.006 L 0.62 0.72 0.82 0.024 0.028 0.032 L1 0.92 1.07 1.22 0.036 0.042 0.048 K 0.80 0.90 1.00 0.031 0.035 0.039 W 0.30 0.40 0.50 0.012 0.016 0.020 W1 0.30 0.40 0.50 0.012 0.016 0.020 W2 4.39 4.49 4.59 0.173 0.177 0.181 W3 4.54 4.64 4.74 0.179 0.183 0.187 W4 0.32 0.37 0.42 0.013 0.015 0.017  6° 10° 14° 6° 10° 14° C17-1388-Rev. B, 16-Oct-17 DWG: 6026 Revision: 16-Oct-17 Document Number: 67734 2 For technical questions, contact: pmostechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 PAD Pattern www.vishay.com Vishay Siliconix Recommended Minimum PADs for PowerPAK® 8 x 8L Single 8.00 (0.31) 0.50 (0.02) 4.05 (0.16) 3.55 (0.14) Y 3.99 (0.16) 4.59 (0.18) 6.90 (0.27) (0, 0) 0.44 (0.02) X 0.54 (0.02) 0.85 (0.03) 6.11 (0.24) 1.29 (0.05) 1.94 (0.08) 8.25 (0.32) 3.23 (0.13) 0.82 (0.03) 2.47 (0.10) 3.62 (0.14) 4.05 (0.16) 2.03 (0.08) 1.15 (0.05) 0.88 (0.03) Dimensions in millimeters (inches) Note • Linear dimensions are in black, the same information is provided in ordinate dimensions which are in blue. Revision: 08-Apr-15 1 Document Number: 67477 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay's knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer's responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer's technical experts. Product specifications do not expand or otherwise modify Vishay's terms and conditions of purchase, including but not limited to the warranty expressed therein. Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and for informational purposes only. Inclusion of these hyperlinks does not constitute an endorsement or an approval by Vishay of any of the products, services or opinions of the corporation, organization or individual associated with the third-party website. Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality or content of the third-party website or for that of subsequent links. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2021 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 09-Jul-2021 1 Document Number: 91000
